Rod Holder

There is a rod holder on top of the rotation unit. The rod holder keeps the rod steady, allowing it to be opened using a hydraulic chuck. By moving up and down with a spring system, the rod holder prevents damage to the threads of the rods. The rod holder prevents friction of the rod during advancement by moving forward and backward.
P, H and N wireline jaws are using.

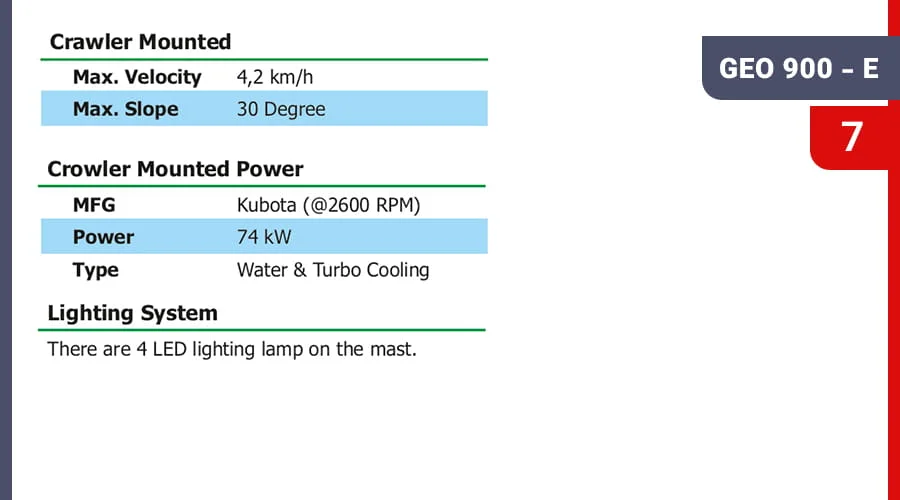

Lighting System
There are 4 LED lighting lamp on the mast.

Mast Ladder
3 parts of ladder.

Weight
Crawler Mounted Weight 11.500 kg

Hydraulic Hose & Connections
Parker connection and hydraulic hoses German brand or Cast connection and hydraulic hoses Italian brand.

Proportional Valves
Controls: Main winch, Wireline winch, Rotation, Fast feed pull/push cylinder and Crawler

Manifold Valve Bank
Controls: Fine feed drilling, Foot clamp, Chuck, Rod slide, Rotation head slide, Head opener, Rotation pilot, Main hoist pilot, Rotation lubrication control valves.

Auxiliary Valve Bank
Controls: Mast raising/lowering, Mast dump/retraction, Levelling jacks (4)

Control Panel
Emergency stop, Drill head rotation pressure, Feed monometer, Hold back monometer, Main hoist monometer, First pump monometer, Secondary pump monometer, Auxiliary pump monometer, Drill head rotation lubrication monometer.
Engine pressure, Engine temperature, Engine RPM, Engine working hour, Engine trouble information, Drill head lubrication trouble information, Rotation RPM meter.

Warranty
1 year against faulty workmanship individual manufactures warranty on all components as per our terms and condition of sale.

These technical specifications are based on theoretical engineering calculations. Actual capacity will depend on specific drilling conditions and materials. Geo Sondaj Makine İmalat Ltd. reserves the right to change or make modifications to designs and specifications without prior notice or obligation.

Options
Hydraulic welder and generator package, Hydro pump, Cyclone, Mast lighting and installation, Water pump release valve, monometer, accumulator and diaphragm, Rod spinner, Rod holder, Rod loader, Swiveling control panel, Remote control panel, Mast ladder, Enclose operator cabin, Engine service information connection, Warning horn to alert drill crew, Fire suppression unit, Water flow meter, Hydraulic oil reservoir fill pump, Wireline hoist self levelling system
